EBG Rear Brake Kit For Rotor 220mm / 230mm
Experience Premium Stopping Power – Genuine Ultra Bee Brakes for Electric Dirt Bikes
Engineered from the proven Ultrabee system and re-designed for maximum performance, the EBG Rear Brake Kit Rotor 220mm / 230mm delivers superior stopping power, optimized heat dissipation, and outstanding durability. Built for riders pushing their electric dirt bikes to the limit, it’s the ultimate upgrade for your e-bike.
Installation Guide: Click here to view the full setup instructions

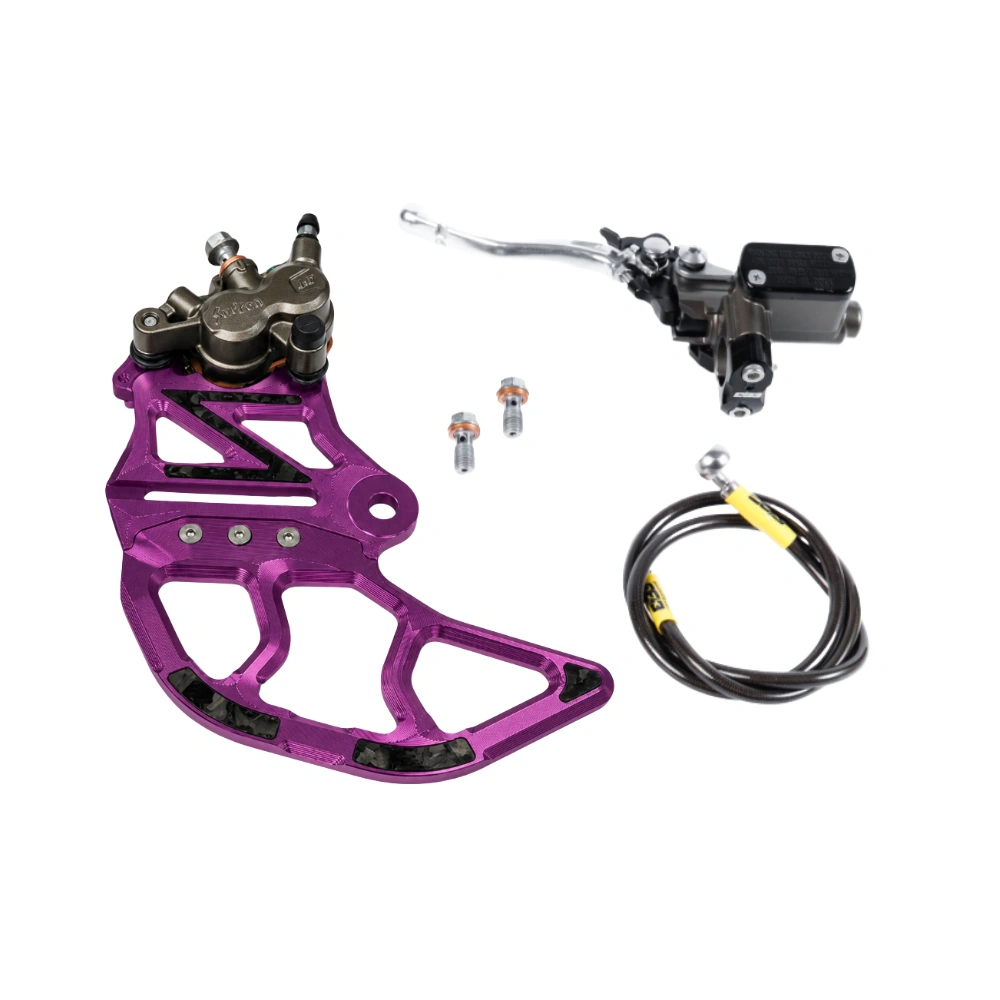

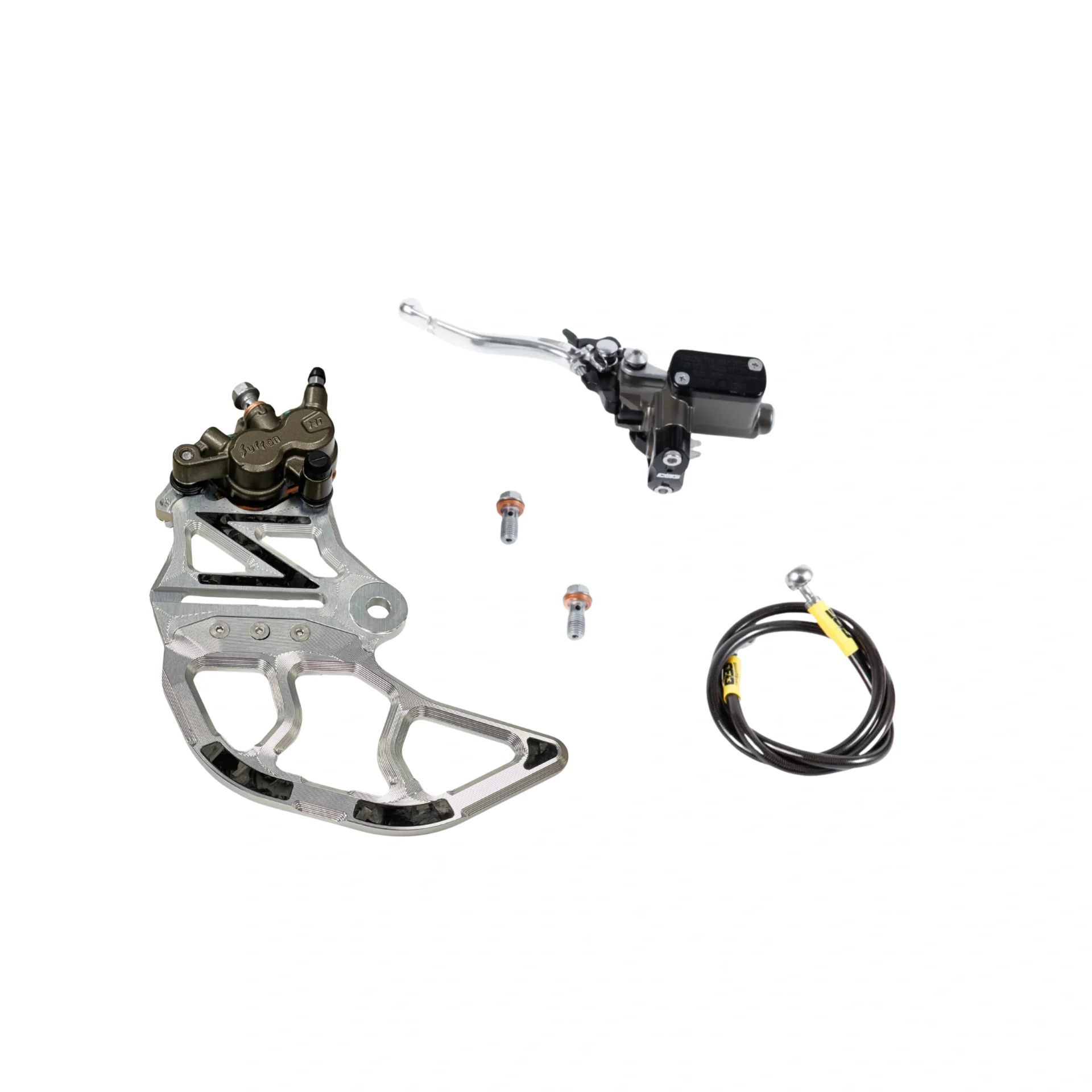

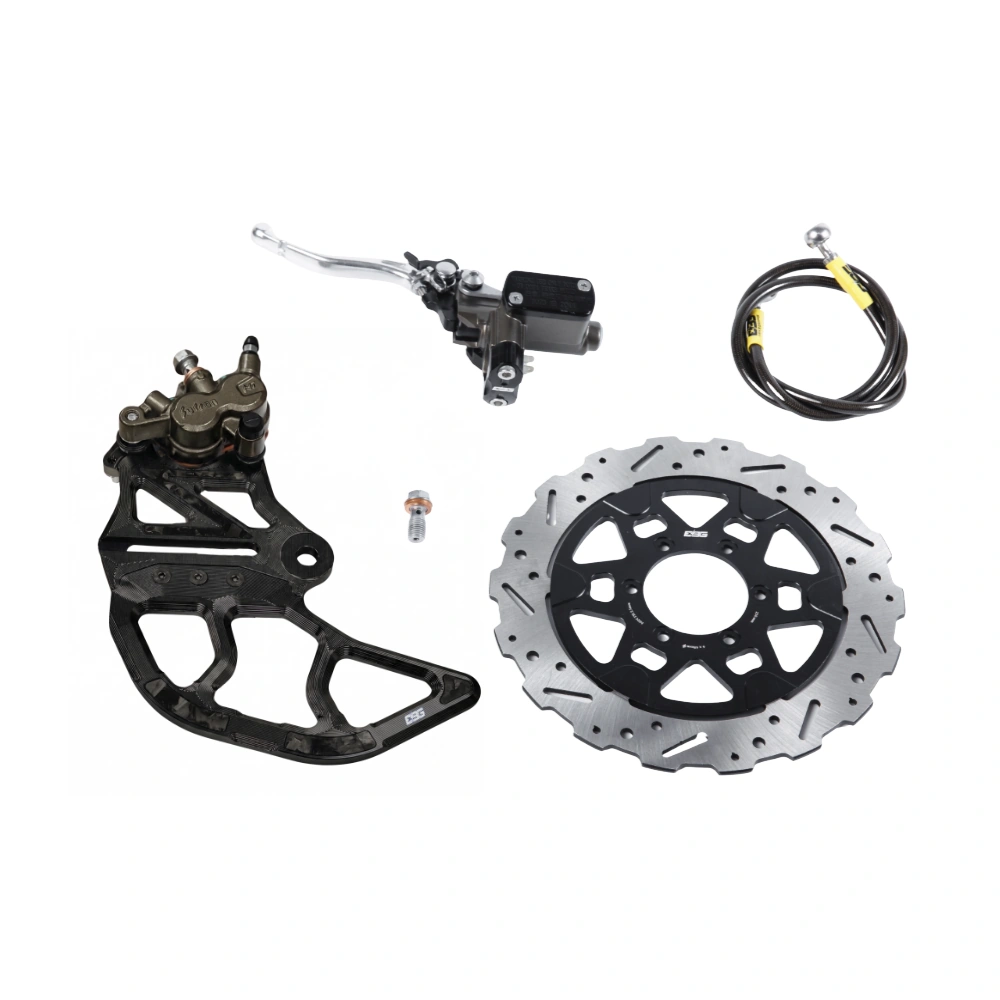

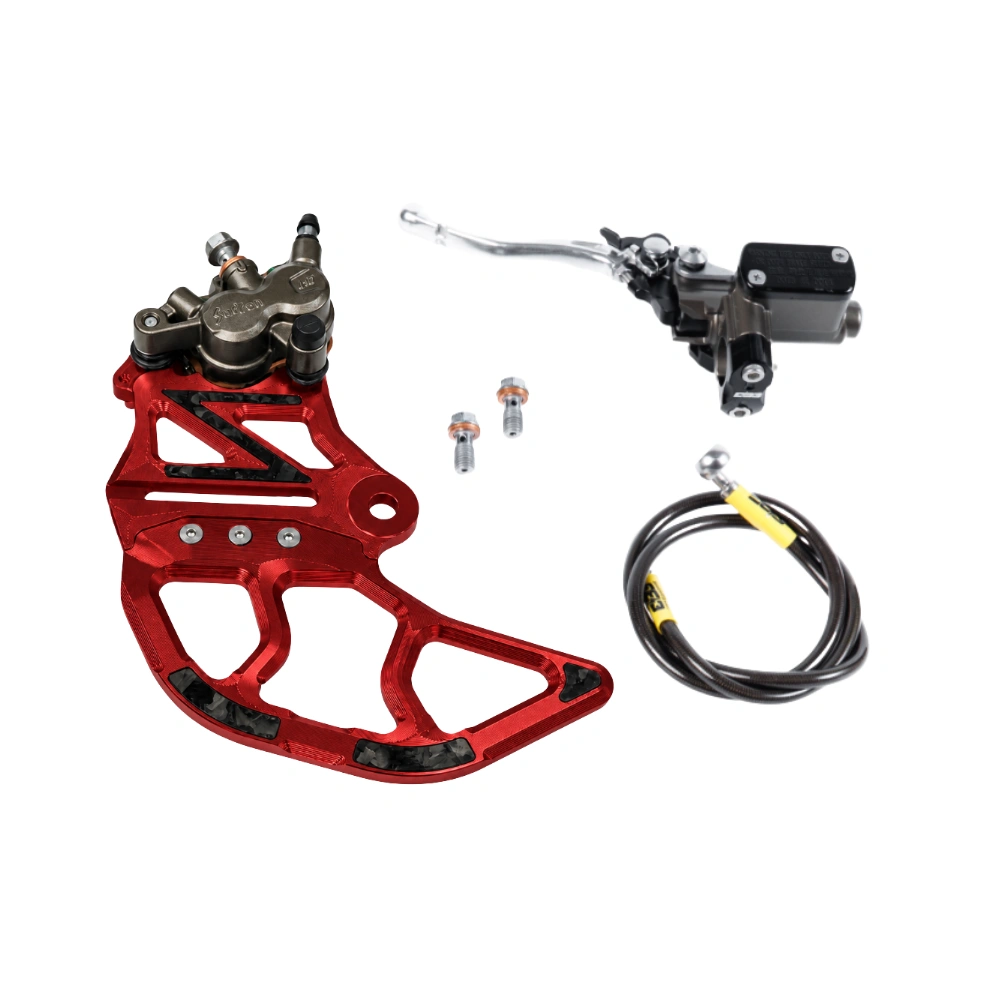

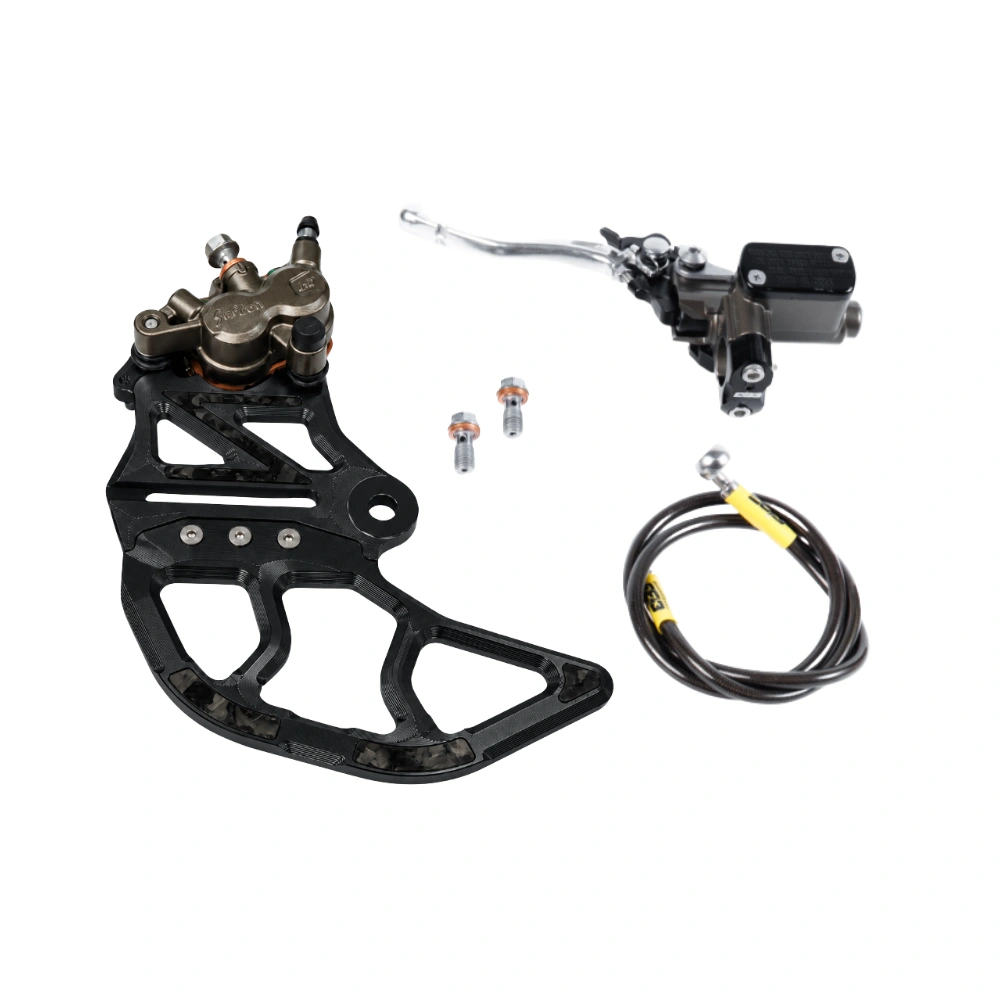

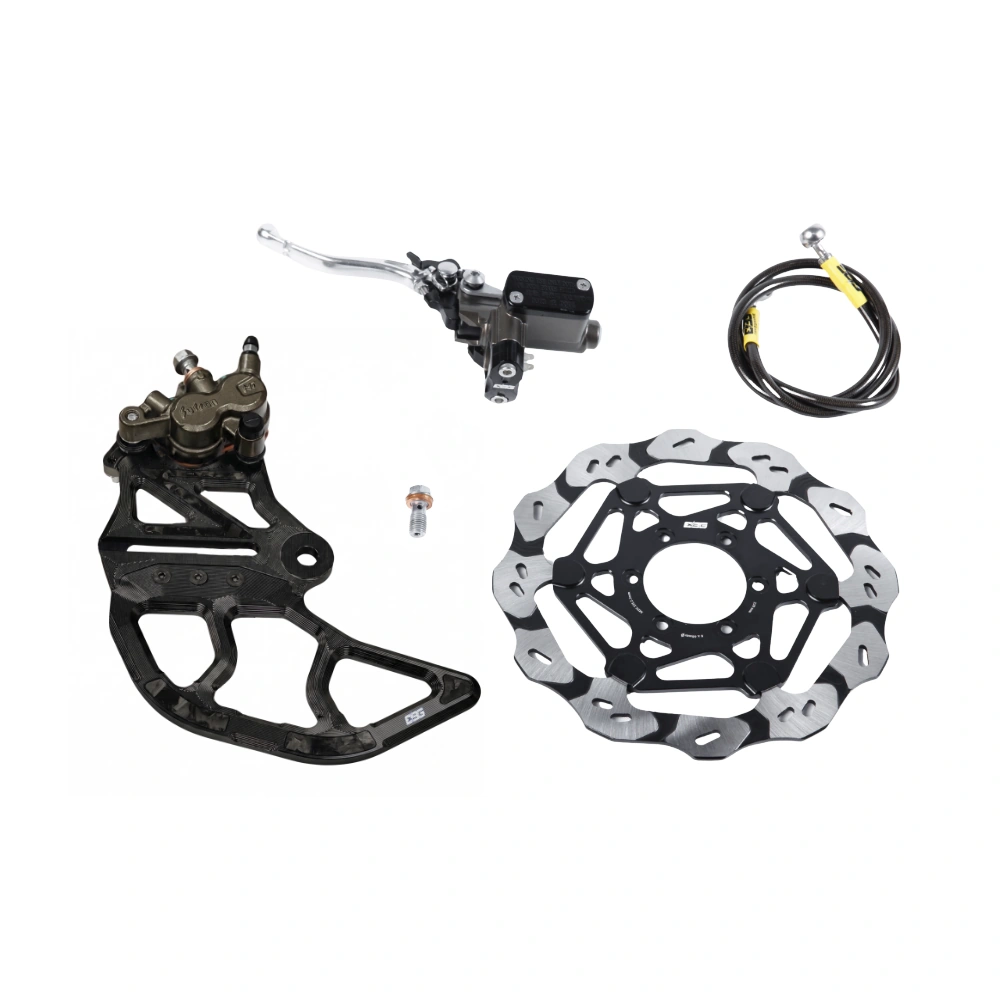

Package Includes
- 220mm/230mm Floating rotor (included if you select the Rotor option)
- Genuine Surron Ultra Bee master cylinders (One or two brake calipers depending on the option you choose.)
- Semi-metallic brake pads (Genuine brake pads from Surron)
- Steel-braided and PTFE core hydraulic brake line
- Dual rear brake bracket (for 220mm/230mm brake rotor)
Specifications
- Rotor Diameter: 220mm/230mm
- Rotor Thickness: 3.5mm
- Rotor Material: Crafted from specialized 420J2 steel: offering high heat resistance, resistance to deformation under load, and superior corrosion resistance.
- Rotor Design: Floating rotor with enhanced Bobbinless Floating system + cooling grooves
- Caliper: Dual Hydraulic Caliper System – 2X clamping force vs OEM
- Brake Pads: Copper-Ceramic Composite – lifespan up to 5000km
- Hydraulic Line: Stainless Steel Braided Brake Hoses and PTFE Core, DOT4 Compatible
Advantages Over Standard Ultra Bee Brake Kit
| Feature | Ultra Bee Brake Kit | EBG Rear Brake Kit Rotor 220mm / 230mm |
| Rotor Diameter | 240mm (default) | 220 / 230mm (optimized for contact & airflow) |
| Rotor Material | Standard Stainless Steel | Stainless Steel 420 High-Temperature Alloy |
| Ventilation Design | Round Holes | Spiral Airflow Optimization |
| Compatibility | Surron Ultra Bee | Compatible with all models equipped with Surron Ultra Bee calipers |
By focusing on Surron upgrades, this kit outperforms stock Ultrabee brakes in durability, compatibility, and braking efficiency.
Compatibility
Designed for a wide range of electric dirt bikes, including:
- Talaria (MX3 / MX4 / MX5 / XXX / Sting)
Compatibility Notes
Fits most OEM and aftermarket setups directly.
Some caliper/fork variations may require shimming (0.5mm–1.5mm washers).
Ensure proper alignment and caliper depression during installation.
For additional requests, please leave a note at checkout.
| Weight | 2.4 kg |
|---|---|
| Model | MX3, MX4, MX5, Sting, XXX |
| Brake Option | Brake Bracket Only, Brake Kit (No Rotor), Brake Kit + Rotor V2.1 (M6x68mm), Brake Kit + Rotor V3.0 (M6x68mm) |
| size | 220mm, 230mm |
| color | Black, Blue, Galaxy Purple, Raw Silver, Red |
